产品材质：采用尼龙PA66
工作温度：静态-40℃至100℃，或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃。

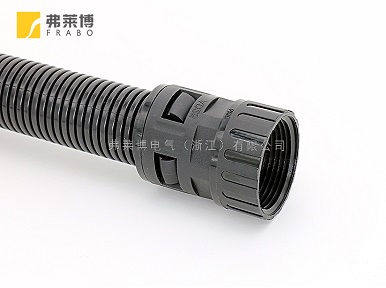

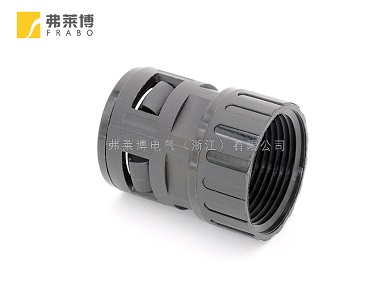

产品特性：“内螺纹”；特殊夹紧爪之设计，夹紧浪管抗拉力强，超快速拔插装卸，提高安装效率。
颜色种类：黑色，其它颜色可定做.
| 规格型号Spec. | 适配软管 | 螺牙规格 | 螺纹外径 | 螺纹长度 | 包装 | |
| 软管型号 | 外径*内径 | (mm) | (mm) | |||
| 公制螺纹 | Conduitsize | OD.xID. | StandardThread | ThreadDiameter | ThreadLength | StdPk |
| FRB.QGN.AD10-M10 | AD10 | 10*6.5 | M10×1.0 | 10 | 12.5 | 50 |
| FRB.QGN.AD10-M12 | M12×1.5 | 12 | 12.5 | 50 | ||
| FRB.QGN.AD13-M12 | AD13 | 13*10.0 | M12×1.5 | 12 | 13 | 50 |
| FRB.QGN.AD13-M16 | M16×1.5 | 16 | 13.5 | 50 | ||
| FRB.QGN.AD15.8-M16 | AD15.8 | 15.8*12.0 | M16×1.5 | 16 | 13.5 | 50 |
| FRB.QGN.AD15.8-M20 | M20×1.5 | 20 | 13.5 | 50 | ||
| FRB.QGN.AD18.5-M20 | AD18.5 | 18.5*14.3 | M20×1.5 | 20 | 13.5 | 50 |
| FRB.QGN.AD21.2-M20 | AD21.2 | 21.2*17.0 | M20×1.5 | 20 | 14.5 | 50 |
| FRB.QGN.AD21.2-M22 | M22×1.5 | 22 | 14.5 | 50 | ||
| FRB.QGN.AD21.2-M25 | M25×1.5 | 25 | 14.5 | 50 | ||
| FRB.QGN.AD25.5-M25 | AD25.5 | 25.5*21.0 | M25×1.5 | 25 | 15 | 25 |
| FRB.QGN.AD28.5-M25 | AD28.5 | 28.5*23.0 | M25×1.5 | 25 | 16 | 25 |
| FRB.QGN.AD28.5-M32 | M32×1.5 | 32 | 16 | 25 | ||
| FRB.QGN.AD34.5-M32 | AD34.5 | 34.5*29.0 | M32×1.5 | 32 | 17 | 25 |
| FRB.QGN.AD34.5-M40 | M40×1.5 | 40 | 17.5 | 25 | ||
| FRB.QGN.AD42.5-M40 | AD42.5 | 42.5*36.0 | M40×1.5 | 40 | 26 | 10 |
| FRB.QGN.AD42.5-M50 | M50×1.5 | 50 | 26 | 10 | ||
| FRB.QGN.AD54.5-M50 | AD54.5 | 54.5*48.0 | M50×1.5 | 50 | 28.5 | 5 |
| FRB.QGN.AD54.5-M63 | M63×1.5 | 63 | 28.5 | 5 | ||
| 英制螺纹 | 适配软管 | 螺牙规格 | 螺纹外径 | 螺纹长度 | 包装 | |
| 软管型号 | 外径*内径 | (mm) | (mm) | |||
| Conduitsize | OD.xID. | StandardThread | ThreadDiameter | ThreadLength | StdPk | |
| FRB.QGN.AD10-G1/4 | AD10 | 10*6.5 | G1/4” | 13.1 | 12.5 | 50 |
| FRB.QGN.AD13-G3/8 | AD13 | 13*10.0 | G3/8” | 16.6 | 13.5 | 50 |
| FRB.QGN.AD15.8-G3/8 | AD15.8 | 15.8*12.0 | G3/8” | 16.6 | 13.5 | 50 |
| FRB.QGN.AD15.8-G1/2 | G1/2” | 20.9 | 13.5 | 50 | ||
| FRB.QGN.AD18.5-G1/2 | AD18.5 | 18.5*14.3 | G1/2” | 20.9 | 13.5 | 50 |
| FRB.QGN.AD21.2-G1/2 | AD21.2 | 21.2*17.0 | G1/2” | 20.9 | 14.5 | 50 |
| FRB.QGN.AD21.2-G3/4 | G3/4” | 26.4 | 14.5 | 50 | ||
| FRB.QGN.AD25.5-G3/4 | AD25.5 | 25.5*21.0 | G3/4” | 26.4 | 15 | 25 |
| FRB.QGN.AD28.5-G3/4 | AD28.5 | 28.5*23.0 | G3/4” | 26.4 | 16 | 25 |
| FRB.QGN.AD28.5-G1 | G1” | 33.2 | 16 | 25 | ||
| FRB.QGN.AD34.5-G1 | AD34.5 | 34.5*29.0 | G1” | 33.2 | 17.5 | 25 |
| FRB.QGN.AD34.5-G1 1/4 | G1 1/4” | 42 | 17.5 | 25 | ||
| FRB.QGN.AD42.5-G1 1/4 | AD42.5 | 42.5*36.0 | G1 1/4” | 48 | 26 | 10 |
| FRB.QGN.AD42.5-G1 1/2 | G1 1/2” | 48 | 26 | 10 | ||
| FRB.QGN.AD54.5-G1 1/2 | AD54.5 | 54.5*48.0 | G1 1/2” | 48 | 28.5 | 5 |
| FRB.QGN.AD54.5-G2 | G2” | 60 | 28.5 | 5 | ||
| 德制螺纹 | 软管型号 | 外径*内径 | (mm) | (mm) | ||
| Conduitsize | OD.xID. | StandardThread | ThreadDiameter | ThreadLength | StdPk | |
| FRB.QGN.AD10-PG7 | AD10 | 10*6.5 | PG7 | 12.4 | 12.5 | 50 |
| FRB.QGN.AD13-PG9 | AD13 | 13*10.0 | PG9 | 15.2 | 13.5 | 50 |
| FRB.QGN.AD15.8-PG11 | AD15.8 | 15.8*12.0 | PG11 | 18.4 | 13.5 | 50 |
| FRB.QGN.AD18.5-PG13.5 | AD18.5 | 18.5*14.3 | PG13.5 | 20.4 | 13.5 | 50 |
| FRB.QGN.AD21.2-PG16 | AD21.2 | 21.2*17.0 | PG16 | 22.5 | 14.5 | 50 |
| FRB.QGN.AD28.5-PG21 | AD28.5 | 28.5*23.0 | PG21 | 28.3 | 16 | 25 |
| FRB.QGN.AD34.5-PG29 | AD34.5 | 34.5*29.0 | PG29 | 37 | 17.5 | 25 |
| FRB.QGN.AD42.5-PG36 | AD42.5 | 42.5*36.0 | PG36 | 47 | 25 | 10 |
| FRB.QGN.AD42.5-PG42 | AD42.5 | 42.5*36.0 | PG42 | 54 | 25 | 5 |
| FRB.QGN.AD54.5-PG48 | AD54.5 | 54.5*48.0 | PG48 | 59.3 | 25 | 5 |
