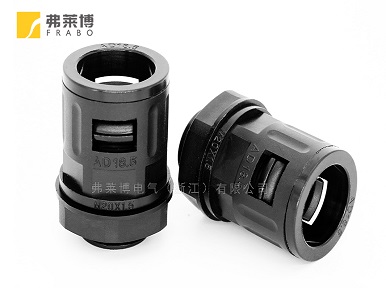

品名：软管快速接头
材质：PA尼龙66
颜色：黑色，其他颜色可以定制
特性：耐温-40℃-110℃，短时130℃
阻燃等级UL94-HB级
通过ROHS认证，ASTMD4329老化试验，低温-40试验。
配合阻燃尼龙软管解决了维修时拆掉电缆的麻烦，极高的线缆防护能力。
耐紫外线，抗老化，极高的防火性，强的机械强度，可承受较重的负载；耐碱耐弱酸、润滑油、冷却液等。
产品颜色： 黑色，灰色可定制
应用领域：电厂、冶金厂，水泥厂等电力设备线缆保护的检修，军工航空设备制造等机械设备制造行业
| 规格型号Spec. | 适配软管 | 螺牙规格 | 螺纹外径 | 螺纹长度 | 包装 |
| 公制螺纹 | OD.xID. | Standard Thread | Thread Diameter | Thread Length | Std Pk |
| FRB.QG.AD10-M10 | 10*6.5 | M10x1.5 | 10 | 10 | 50 |
| FRB.QG.AD10-M12 | M12x1.5 | 12 | 10 | 50 | |
| FRB.QG.AD10-M16 | M16x1.5 | 16 | 10 | 50 | |
| FRB.QG.AD13-M12 | 13*10.0 | M12x1.5 | 12 | 10 | 50 |
| FRB.QG.AD13-M16 | M16x1.5 | 16 | 10 | 50 | |
| FRB.QG.AD13-M18 | M18x1.5 | 18 | 10 | 50 | |
| FRB.QG.AD13-M20 | M20x1.5 | 20 | 10 | 50 | |
| FRB.QG.AD15.8-M16 | 15.8*12.0 | M16x1.5 | 16 | 10 | 50 |
| FRB.QG.AD15.8-M18 | M18x1.5 | 18 | 12.5 | 50 | |
| FRB.QG.AD15.8-M20 | M20x1.5 | 20 | 12.5 | 50 | |
| FRB.QG.AD18.5-M20 | 18.5*14.3 | M20x1.5 | 20 | 12.5 | 50 |
| FRB.QG.AD18.5-M22 | M22x1.5 | 22 | 12.5 | 50 | |
| FRB.QG.AD21.2-M20 | 21.2*17.0 | M20x1.5 | 20 | 13 | 50 |
| FRB.QG.AD21.2-M22 | M22x1.5 | 22 | 13 | 50 | |
| FRB.QG.AD21.2-M24 | M24x1.5 | 24 | 13 | 50 | |
| FRB.QG.AD21.2-M25 | M25x1.5 | 25 | 13 | 50 | |
| FRB.QG.AD21.2-M32 | M32x1.5 | 32 | 13 | 50 | |
| FRB.QG.AD25.5-M25 | 25.5*21.0 | M25x1.5 | 25 | 13 | 50 |
| FRB.QG.AD28.5-M25 | 28.5*23.0 | M25x1.5 | 25 | 13 | 20 |
| FRB.QG.AD28.5-M27 | M27x1.5 | 27 | 13 | 20 | |
| FRB.QG.AD28.5-M30 | M30x1.5 | 30 | 13 | 20 | |
| FRB.QG.AD28.5-M30B | M30x2.0 | 30 | 13 | 20 | |
| FRB.QG.AD28.5-M32 | M32x1.5 | 32 | 13 | 20 | |
| FRB.QG.AD34.5-M32 | 34.5*29.0 | M32x1.5 | 32 | 14 | 10 |
| FRB.QG.AD34.5-M36 | M36x1.5 | 36 | 14 | 10 | |
| FRB.QG.AD34.5-M40 | M40x1.5 | 40 | 14 | 10 | |
| FRB.QG.AD42.5-M40 | 42.5*36.0 | M40x1.5 | 40 | 15 | 8 |
| FRB.QG.AD42.5-M42 | M42x1.5 | 42 | 15 | 8 | |
| FRB.QG.AD42.5-M48 | M48x1.5 | 48 | 15 | 8 | |
| FRB.QG.AD54.5-M50 | 54.5*48.0 | M50x1.5 | 50 | 16 | 5 |
| FRB.QG.AD54.5-M63 | M63x1.5 | 63 | 16 | 5 | |
| FRB.QG.AD67.2-M63 | 67.2*56.3 | M63x1.5 | 63 | 16 | 2 |
| 德制螺纹 | 适配软管 | 螺牙规格 | 螺纹外径 | 螺纹长度 | 包装 |
| OD.xID. | Standard Thread | Thread Diameter | Thread Length | Std Pk | |
| FRB.QG.AD10-PG7 | 10*6.5 | PG7 | 12.4 | 10 | 50 |
| FRB.QG.AD13-PG9 | 13*10.0 | PG9 | 15.2 | 10 | 50 |
| FRB.QG.AD15.8-PG11 | 15.8*12.0 | PG11 | 18.4 | 12.5 | 50 |
| FRB.QG.AD18.5-PG13.5 | 18.5*14.3 | PG13.5 | 20.4 | 12.5 | 50 |
| FRB.QG.AD21.2-PG16 | 21.2*17.0 | PG16 | 22.5 | 13 | 50 |
| FRB.QG.AD28.5-PG21 | 28.5*23.0 | PG21 | 28.3 | 13 | 20 |
| FRB.QG.AD34.5-PG29 | 34.5*29.0 | PG29 | 37 | 14 | 10 |
| FRB.QG.AD42.5-PG36 | 42.5*36.0 | PG36 | 47 | 15 | 8 |
| FRB.QG.AD54.5-PG42 | 54.5*48.0 | PG42 | 54 | 16 | 5 |
| FRB.QG.AD54.5-PG48 | PG48 | 59.3 | 16 | 5 | |
| 英制螺纹 | 适配软管 | 螺牙规格 | 螺纹外径 | 螺纹长度 | 包装 |
| OD.xID. | Standard Thread | Thread Diameter | Thread Length | Std Pk | |
| FRB.QG.AD10-G1/4 | 10*6.5 | G1/4 | 13.1 | 10 | 50 |
| FRB.QG.AD13-G3/8 | 13*10.0 | G3/8 | 16.6 | 10 | 50 |
| FRB.QG.AD15.8-G3/8 | 15.8*12.0 | G3/8 | 16.6 | 12.5 | 50 |
| FRB.QG.AD15.8-G1/2 | G1/2 | 20.9 | 12.5 | 50 | |
| FRB.QG.AD18.5-G1/2 | 18.5*14.3 | G1/2 | 20.9 | 12.5 | 50 |
| FRB.QG.AD21.2-G1/2 | 21.2*17.0 | G1/2 | 20.9 | 13 | 50 |
| FRB.QG.AD21.2-G3/4 | G3/4 | 26.4 | 13 | 50 | |
| FRB.QG.AD25.5-G3/4 | 25.5*21 | G3/4 | 26.4 | 13 | 50 |
| FRB.QG.AD28.5-G3/4 | 28.5*23.0 | G3/4 | 26.4 | 13 | 20 |
| FRB.QG.AD34.5-G1 | 34.5*29.0 | G1 | 33.2 | 14 | 10 |
| FRB.QG.AD42.5-G1.1/4 | 42.5*36.0 | G1 1/4 | 42 | 15 | 8 |
| FRB.QG.AD42.5-G1.1/2 | G1 1/2 | 48 | 15 | 8 | |
| FRB.QG.AD54.5-G1.1/2 | 54.5*48.0 | G1 1/2 | 48 | 16 | 5 |
| FRB.QG.AD54.5-G2 | G2 | 60 | 16 | 5 |
